M38A1¶

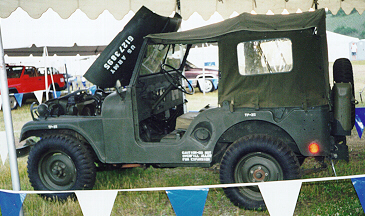

1958 M38A1 drivers side

The M38A1 (MD) was built from 1952 until 1957 for the U.S. military forces and from 1958 until 1971 for export to foreign governments. The production information available for these vehicles suggests a much more limited production run. The M38A1 was so well liked, they introduced the CJ-5 in 1955 based on its design.

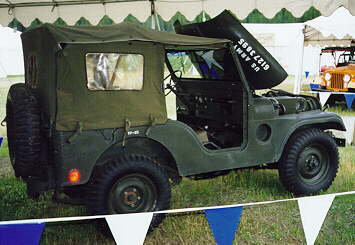

1958 M38A1 passenger side

Drive Train¶

The M38A1 used the "Hurricane" F-Head 134 I4 engine, T-90 3 speed transmission, Dana 18 transfer case, either the Dana 25 or the Dana 27 front axle, and Dana 44 rear axle.

Production Information¶

Year	Serial Number Range	Production
1952	10001 - xxx	ppp
1953	xxx - xxx	ppp
1954	xxx - xxx	ppp
1955	xxx - 85428	ppp
1956	10001 - 11000	1000

Units built in 1956 were shipped to Egypt.
