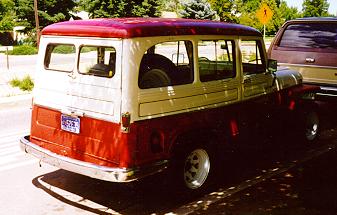

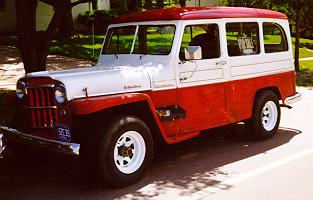

Willys Wagon¶
The Station and Delivery Wagons were produced from 1946 through 1965.
Variations¶
| Model | Basic Variations |
|---|---|
| Jeep Station Wagon (2WD) | None |
| Jeep 4x4 Utility Wagon | Utility Wagon; Cowl and Windshield; Flat Faced Cowl |
| Jeep Panel Delivery (2WD, 4WD) | Panel Delivery 2WD; Flat Faced Cowl; Cowl and Windshield; Traveler |
Specifications¶
| Specification | Value |
|---|---|
| Wheelbase | 104" |
| Length | 174" |
| Width | 68" (SD), 72" (SW) |
| Height | 72" |
| Front Tread | 57" |
| Rear Tread | 57" |
| Gross Weight | 4500 lbs (except 4x2 SW: 4300 lbs) |
Curb Weights¶
| Year | Model | Curb Weight |
|---|---|---|
| 1949 | 4x2 SW | 2898 lbs |
| 1963 | 6-230 4x4 UW | 3345 lbs |
| 1963 | 6-230 4x4 UD | 3147 lbs |
| 1963 | F4-134 4x4 UW | 3228 lbs |
| 1963 | F4-134 4x4 UD | 3030 lbs |
| 1963 | 6-230 4x2 UW | 3106 lbs |
| 1963 | 6-230 4x2 UD | 2998 lbs |
| 1963 | F4-134 4x2 UW | 2993 lbs |
| 1963 | F4-134 4x2 UD | 2881 lbs |
Historical Notes & Items of Interest¶
Willys do Brazil was producing 2wd and 4wd Station Wagons called the Rural in 1960. The Rural had a different front fenders, hood, grille, and taillights. Brooks Stevens contributed to their unique front end appearance.
Drive Train¶
Engine¶
Transmission¶
Transfer Case¶
Front Axle¶
Rear Axle¶
Production Information¶
| YEAR | BODY | MODEL | START | END | UNITS |
|---|---|---|---|---|---|
| 1946 | 463 | 10001 | 16534 | 6534 | |
| 1947 | 463 | 16535 | 44050 | 27515(14) | |
| 1948 | 463 (Inc VJ2) | 44051 | 84825 | 40774(14) | |
| 663 | 10001 | 13607 | 3607 | ||
| 1949 | 463 (Inc VJ2) | 84826 | 107895 | 23069(14) | |
| 4x463 SW | 10001 | 14472 | 4472 | ||
| 663 | 13608 | 23614 | 10006(14) | ||
| 1950 | 4x463 SW | 14473 | 17559 | 3086(14) | |
| 463 | 107896 | 112402 | 4506(14) | ||
| 4x473 SW-SD | 10001 | 12450 | 2450 | ||
| 473 SW-SD | 10001 | 29616 | 19616 | ||
| 663 | 23615 | 25937 | 2322(14) | ||
| 673 SW | 10001 | 17931 | 7931 | ||
| 1951 | 4x473 SW | 451 FA1 | 10001 | 21854 | 11854 |
| 473 SW | 451 AA1 | 10001 | 25906 | 15906 | |
| 473 SD | 451 CA1 | 10001 | 10003 | 3 | |
| 2x473 SW | 451 HA1 | 10001 | 10630 | 630 | |
| 2x473 SD | 451 JA1 | 10001 | 10135 | 135 | |
| 673 SW | 651 AA1 | 10001 | 18470 | 8470 | |
| 1952 | 4x475 SW&SD | 452 FA2 | 10001 | 15683 | 5683 |
| 475 SW | 452 AA2 | 10001 | 14277 | 4277 | |
| 2x475 SW | 452 HA2 | 10001 | 10018 | 18 | |
| 473 SD | 452 CA1 | 10001 | 12091 | 2091 | |
| 685 SW | 652 AA2 | 10001 | 13709 | 3709 | |
| 1953 | 4x475 SW | 453 FA2 | 10001 | 20631 | 10631 |
| 4x475 SD | 453 RA2 | 10001 | 10992 | 992 | |
| 475 SW | 453 AA2 | 10001 | 14747 | 4747 | |
| 475 SD | 453 CA2 | 10001 | 12347 | 2347 | |
| 2x475 SD | 453 JA2 | 10001 | 10094 | 94 | |
| 685 SW | 653 AA2 | 10001 | 17533 | 7533 | |
| 1954 | 4x475 SW | 454 FA2 | 10001 | 13528 | 3528 |
| 4x475 SD | 454 RA2 | 10001 | 10288 | 288 | |
| 475 SW | 454 AA2 | 10001 | 10188 | 188 | |
| 475 SD | 454 CA2 | 10001 | 10148 | 148 | |
| 2x475 SD (Post Off.) | 454 JA3 | 10001 | 10100 | 100 | |
| 6-226 4x4 SW | 654 FA2 | 10001 | 12645 | 2645 | |
| 6-226 4x4 SD | 454 RA2 | 10001 | 10219 | 219 | |
| 685 SW | 654 AA2(7) | 10001 | 10945 | 945 | |
| 685 SD | 654 CA2 | 10001 | 10308 | 308 | |
| 1955 | 475 4x4 SW | 54148 | 10001 | 11275 | 1275 |
| 475 4x4 SD | 54248 | 10001 | 10174 | 174 | |
| 475 4x4 C/WS | 54548 | 10001 | 10006 | 6 | |
| 475 SW | 54747 | 5001 | 10098 | 98(8) | |
| 475 SD | 54847 | 5001 | 10098 | 98(8) | |
| 475 2x4 SW | 54147 | 10001 | 10070 | 70 | |
| 475 2x4 SD | 54247 | 10001 | 10084 | 84 | |
| 6-226 4x4 SW | 54168 | 5001 | 18095 | 13095 | |
| 6-226 4x4 SD | 54268 | 5001 | 10890 | 5890 | |
| 6-226 4x4 ST CH | 54668 | 10001 | 10002 | 2 | |
| 6-226 4x4 FFC | 54468 | 10001 | 10003 | 3 | |
| 6-226 4x4 C/WS | 54568 | 10001 | 10001 | 1 | |
| 6-226 4x4 AMB | 54068-03 | 10001 | 10005 | 5 | |
| 6-226 2x4 SW | 54167 | 10001 | 10845 | 845 | |
| 6-226 2x4 SD | 54267 | 10001 | 10226 | 226 | |
| 6-226 2x4 ST CH | 54667 | 10001 | 10001 | 1 | |
| 6-226 2x4 AMB | 54067-03 | 10001 | 10001 | 1 | |
| 6-226 2x4 AMB | 54067-04 | 10001 | 10001 | 1 | |
| 685 2x4 SW | 54127 | 10001 | 10108 | 108 | |
| 685 2x4 SD | 54227 | 10001 | 10096 | 96 | |
| 685 SW | 54727 | 5001 | 11093 | 6093 | |
| 685 SD | 54827 | 5001 | 10309 | 5309 | |
| 1956 | 475 4x4 SW | 54148 | 11276 | 12940 | 1664 |
| 475 4x4 SD | 54248 | 10175 | 10397 | 222 | |
| 475 4x4 FFC | 54448 | 10001 | 10001 | 1 | |
| 475 4x4 C/WS | 54548 | 10007 | --- | 0 | |
| 475 4x4 AMB | 54048-03 | 10001 | 10028 | 28 | |
| 475 2x4 SW | 54147 | 10071 | 10395 | 324 | |
| 475 2x4 SD | 54247 | 10085 | 10576 | 491 | |
| 475 2x4 ST CH | 54647 | 10001 | 10001 | 1 | |
| 475 2x4 AMB | 54047 | 10001 | 10004 | 4 | |
| 6-226 4x4 SW | 54168 | 18096 | 25335 | 7239 | |
| 6-226 4x4 SD | 54268 | 10891 | 11650 | 757 | |
| 6-226 4x4 ST CH | 54668 | 10003 | --- | 0 | |
| 6-226 4x4 FFC | 54468 | 10004 | --- | 0 | |
| 6-226 4x4 C/WS | 54568 | 10002 | --- | 0 | |
| 6-226 4x4 AMB | 54068-03 | 10006 | 10013 | 8 | |
| 6-226 4x4 AMB | 54068-04 | 10001 | 10003 | 3 | |
| 6-226 4x4 RT | 54068-07 | 10001 | 10002 | 2 | |
| 6-226 2x4 SW | 54167 | 10846 | 12190 | 1344 | |
| 6-226 2x4 SD | 54267 | 10227 | 10600 | 373 | |
| 6-226 2x4 AMB | 54067-03 | 10002 | 10002 | 1 | |
| 6-226 2x4 AMB | 54067-04 | 10002 | 10002 | 1 | |
| 1957 | 475 4x4 SW | 54148 | 12941 | 14250 | 1310 |
| 475 4x4 SD | 54248 | 10398 | 10679 | 282 | |
| 475 4x4 FFC | 54448 | 10002 | 10004 | 3 | |
| 475 4x4 AMB | 54048-03 | 10029 | 10061 | 32 | |
| 475 2x4 SW | 54147 | 10396 | 10930 | 535(5) | |
| 475 2x4 SD | 54247 | 10577 | 11006 | 430(5) | |
| 475 2x4 ST CH | 54647 | 10002 | 10003 | 2(5) | |
| 475 2x4 AMB | 54047-03 | 10001 | 10007 | 7(5) | |
| 6-226 4x4 SW | 54168 | 25336 | 32699 | 7364 | |
| 6-226 4x4 SD | 54268 | 11651 | 12230 | 580(12) | |
| 6-226 4x4 FFC | 54468 | 10004 | 10004 | 1 | |
| 6-226 4x4 AMB | 54068-03 | 10014 | 10034 | 21 | |
| 6-226 4x4 RT | 54068-07 | 10003 | 10009 | 7 | |
| 6-226 2x4 SW | 54167 | 12191 | 14667 | 2477 | |
| 6-226 2x4 SD | 54267 | 10601 | 10838 | 238 | |
| 6-226 2x4 AMB | 54067-03 | 10003 | 10006 | 4 | |
| 1958 | 475 4x4 SW | 54148 | 14251 | 14743 | 493 |
| 475 4x4 SD | 54248 | 10680 | 10939 | 259(14) | |
| 475 4x4 AMB | 54048-03 | 10062 | 10070 | 8(14) | |
| 475 2x4 SW | 54147 | 10931 | 11200 | 69(14) | |
| 475 2x4 SD | 54247 | 11007 | 11425 | 418(14) | |
| 475 2x4 ST CH | 54647 | 10104 | 10163 | 60 | |
| 475 2x4 AMB | 54047-03 | 10008 | 10008 | 1 | |
| 6-226 4x4 SW | 54168 | 32700 | 39196 | 6497 | |
| 6-226 4x4 SD | 54268 | 12231 | 12766 | 536 | |
| 6-226 4x4 AMB | 54068-03 | 10035 | 10051 | 16(14) | |
| 6-226 4x4 RT | 54068-07 | 10010 | 10012 | 2(14) | |
| 6-226 2x4 SW | 54167 | 14668 | 15252 | 585 | |
| 6-226 2x4 SD | 54267 | 10839 | 11038 | 200 | |
| 6-226 2x4 AMB | 54067-03 | 10007 | 10010 | 4 | |
| 1959 | 475 4x4 SW | 54148 | 14744 | 16095 | 1352 |
| 475 4x4 SD | 54248 | 10940 | 11079 | 140 | |
| 475 4x4 AMB | 54048-03 | 10071 | 10133 | 63 | |
| 475 2x4 SW | 54147 | 11201 | 11441 | 241 | |
| 475 2x4 SD | 54247 | 11426 | 11861 | 436 | |
| 475 2x4 ST CH | 54647 | 10164 | 10266 | 103 | |
| 475 2x4 AMB | 54047-03 | 10008 | 10009 | 2 | |
| 6-226 4x4 SW | 54168 | 39197 | 47362 | 8165(14) | |
| 6-226 4x4 SD | 54268 | 12767 | 13316 | 550 | |
| 6-226 4x4 FFC | 54468 | 10004 | 10004 | 1 | |
| 6-226 4x4 AMB | 54068-03 | 10052 | 10096 | 45 | |
| 6-226 4x4 RT | 54068-07 | 10013 | 10014 | 2 | |
| 6-226 4x4 AVA | 54068-09 | 10021 | 10060 | 40 | |
| 6-226 2x4 SW | 54167 | 15253 | 15602 | 350 | |
| 6-226 2x4 SD | 54267 | 11039 | 11276 | 238 | |
| 6-226 2x4 AMB | 54067-03 | 10010 | 10041 | 32 | |
| 6-226 2x4 FFC | 54467 | 10001 | 10001 | 1 | |
| 1960 | 475 4x4 SW | 54148 | 16096 | 17270 | 1175 |
| 475 4x4 SD | 54248 | 11080 | 11206 | 127 | |
| 475 4x4 AMB | 54048-03 | 10134 | 10226 | 93 | |
| 475 2x4 SW | 54147 | 11441 | 11496 | 56 | |
| 475 2x4 SD | 54247 | 11861 | 12344 | 484 | |
| 475 2x4 ST CH | 54647 | 10266 | 10355 | 90 | |
| 475 2x4 FFC | 54447 | 10001 | 10202 | 202 | |
| 6-226 4x4 SW | 54168 | 47363 | 56330 | 8968 | |
| 6-226 4x4 SD | 54268 | 13317 | 14562 | 1246 | |
| 6-226 4x4 AMB | 54068-03 | 10097 | 10204 | 108 | |
| 6-226 4x4 AMB | 54068-04 | 10004 | 10004 | 1 | |
| 6-226 4x4 AVA | 54068-09 | 10061 | 10111 | 51 | |
| 6-226 4x4 Traveler | 54268-14 | 10001 | 10112 | 112 | |
| 6-226 2x4 SW | 54167 | 15602 | 15681 | 80 | |
| 6-226 2x4 SD | 54267 | 11276 | 11693 | 418 | |
| 6-226 2x4 C/WS | 54567 | 10001 | 10073 | 73 | |
| 6-226 2x4 Traveler | 54267-14 | 10001 | 10102 | 102 | |
| 1961 | 475 4x4 SW | 54148 | 17271 | 18110 | 840(21) |
| 475 4x4 SD | 54248 | 11207 | 11762 | 556(21) | |
| 475 4x4 AMB | 54048-03 | 10227 | 15281 | 55(21) | |
| 474 4x4 Traveler | 54348 | 10001 | 10005 | 5(21) | |
| 475 2x4 SD | 54247 | 12345 | 12557 | 213(21) | |
| 475 2x4 FFC | 54447 | 10202 | 10202 | 1(21) | |
| 6-226 4x4 SW | 54168 | 56331 | 64238 | 7908(21) | |
| 6-226 4x4 SD | 54268 | 14562 | 15310 | 749(21) | |
| 6-226 4x4 ST CH | 54668 | 10101 | 10101 | 1(21) | |
| 6-226 4x4 C/WS | 54568 | 10101 | 10190 | 90(21) | |
| 6-226 4x4 AMB | 54068-03 | 10205 | 10327 | 123(21) | |
| 6-226 4x4 AVA | 54068-09 | 10112 | 10167 | 56(21) | |
| 6-226 4x4 Traveler | 54368 | 10001 | 10014 | 14(21) | |
| 6-226 2x4 SD | 54267 | 11694 | 19144 | 251(21) | |
| 6-226 2x4 AMB | 54067-03 | 10042 | 10116 | 75(21) | |
| 6-226 2x4 C/WS | 54567 | 10074 | 10124 | 51(21) | |
| 6-226 2x4 Traveler | 54367 | 10001 | 10004 | 4(21) | |
| 1962 | |||||
| 1963 | |||||
| 1964 | |||||
| 1965 |
Special Wagons¶
| 1958 | 475 2x4 Maverick | 58147 | 10001 | 10100 | 100 |
|---|---|---|---|---|---|
| 1959 | 475 2x4 Maverick | 58147 | 10101 | 12654 | 2553(14) |
| 475 2x4 El Goucho | 58547 | 10001 | 10003 | 3(14) | |
| 6-226 2x4 Maverick | 58167 | 10001 | 10130 | 130 | |
| 1960 | 475 2x4 SW Face Lift(18) | 58147 | 12655 | 15220 | 2566 |
| 6-226 2x4 SW Face Lift(18) | 58167 | 10130 | 11097 | 968 | |
| 1961 | 475 2x4 Maverick | 58147 | 15221 | 16422 | 1202(19)(21) |
| 6-226 2x4 Maverick | 58167 | 11098 | 11473 | 376(21) |
Later Production Information¶
1962¶
1965 | 6-230 4x4 Station Wagon (Utility Wagon) 6-230 4x2 Sedan Delivery (Utility Delivery) 6-230 4x4 Sedan Delivery (Utility Delivery) 6-230 4x4 Flat Face Cowl 6-230 4x4Cowl and Windshield 6-230 4x4 Stripped Chassis 6-230 4x2 Station Wagon (Utility Wagon) | 54178-10001 and up 54277-10001 and up 54278-10001 and up 54478-10001 and up 54578-10001 and up 54678-10001 and up 58177-10001 and up
| *** ---|---|---|--- * The VJ-2 is included in this serial number range. ** Serial numbers consecutive with 1955 production. *** Production data not available.
Serial Number Locations¶
Serial numbers are located on the identification plate located near the bottom rear of the left-hand door frame.
- F-Head "Hurricane" I4 134 - Located on tap water pump boss at upper front end of cylinder block.
- L-Head I6 226 - Located near left front corner of cylinder block above generator.
- OHC "Tornado" I6 230 - Located near lower front right corner of cylinder block.
