SR-4 and T-4¶

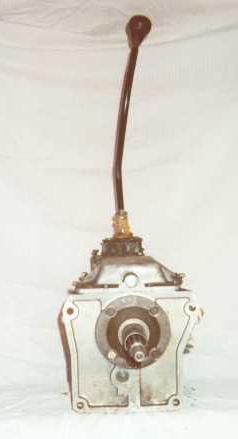

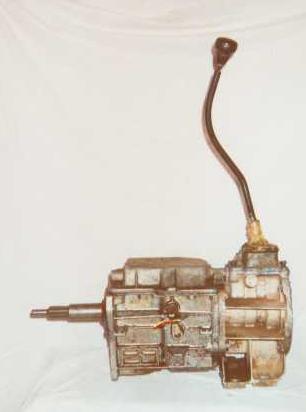

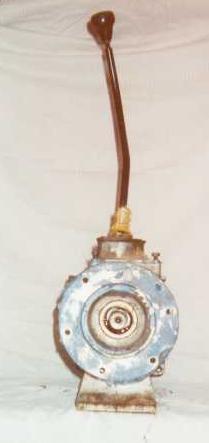

The SR-4 and T-4 are light duty four speeds. Pictured is an SR-4, but they look almost identical from the outside. These transmission were manufactured by Borg-Warner and they often say Ford on the top cover. The case is aluminum and the casting numbers on the drivers side are 13-32 for the SR-4 and 13-51 for the T-4.
The T-4 and SR-4 use a 1 1/8" 10 spline input shaft when they are used with the I6 and 1" 14 spline input shaft when they are used with the I4.
Usage¶
The SR-4 is a light duty transmission used only in 1980 and 1981 in the 151 and some 258s. The T-4 is also a light duty transmissions used from 1982 until 1986.
| Transmission | 1st | 2nd | 3rd | 4th | 5th | Rev |
|---|---|---|---|---|---|---|
| SR-4 | 4.07 | 2.39 | 1.49 | 1.00 | 3.95 | |
| T-4 | 4.03 | 2.37 | 1.50 | 1.00 | 3.76 |
