T-5¶

T-5 front T-5 side T-5 back

The T-5 is a light duty transmissions five speed transmission that looks very similar to the SR-4 and T-4, except for the bulge the shift lever housing for the overdrive. The T-5 also looks about 10% bigger all around than the 4 speeds. This transmission was manufactured by Borg-Warner and may say Ford on the top cover. The case is aluminum and has a casting numbers on the drivers side of 13-52. The T-5 has a 1 1/8" 10 spline input shaft and a 23 spine output shaft.

Usage¶

The T-5 was used in CJs from 1982 until 1986.

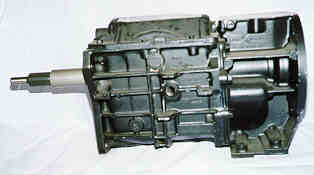

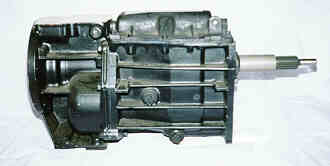

| T-5 side T-5 passenger side

Transmission	1st	2nd	3rd	4th	5th	Rev
T-5	4.03	2.37	1.50	1.00	0.86	3.76
